------The KY-PS Series
Features
lC-band
lLow half-wave voltage
lLow insertion loss
lCompact design
Applications
lQuantum communication
lHigh-speed test equipment
lPolarization Scrambler
lOptical fiber sensing system
Description
The KY-PS series electro-optic polarization modulators are capable of generating linearly polarized light. Fabricated using the titanium diffusion process, these devices support simultaneous transmission of both TE and TM polarization modes. The input and output fiber slow axes are coupled at a 45°angle relative to the waveguide's optical axis. When linearly polarized light is launched into the waveguide along the input fiber's slow axis, it splits into TE and TM polarization modes. By varying the voltage applied to the waveguide, the phase difference between these two polarization modes can be precisely adjusted, thereby enabling controlled modification of the output fiber's polarization state. This product is mainly used for quantum information systems, high speed precision measurement instrumentation, and fiber-optic polarization scrambling devices.

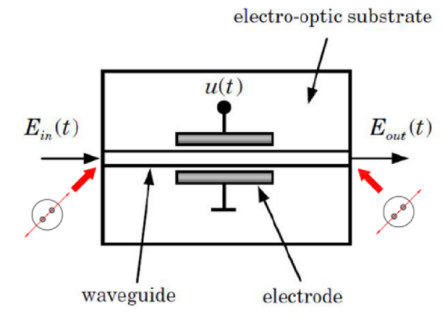

Block diagram
Parameters
Parameters | Symbol | KY-PS-15-300M-PP-FA |
Wavelength | l | 1550±100nm |
Insertion loss | IL | £3.5 dB |
Optical return loss | ORL | -45dB |
Bandwidth (-3dB) | S21 | DC-300MHz |
Rise time (10%~90%) | tr | 1ns |
RF half-wave voltage Vpi@50KHz | Vπ | 4V |
Input impedance | ZRF | 1MW |
Electrical interface |
| SMA(f) |
Input/output fiber |
| PM Panda, slow axis alignment or SM fiber |
Fiber connector |
| FC/APC |
Operating temperature | Top | -20~70°C |
Storage temperature | Tst | -40~80°C |
Maximum Input Voltage | Vi | ±15V |
Maximum Input Optical Power | Po | 50mW |

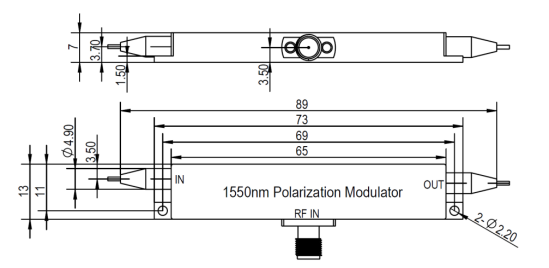

Dimensions (Unit: mm)
Ordering Information
KY-PS-15-300M-XX-FA/FP
XX—Input&output fiber: PP---PMF/PMF, PS---PMF/SMF
FA/FP—Connector：FA---FC/APC; FP---FC/PC
